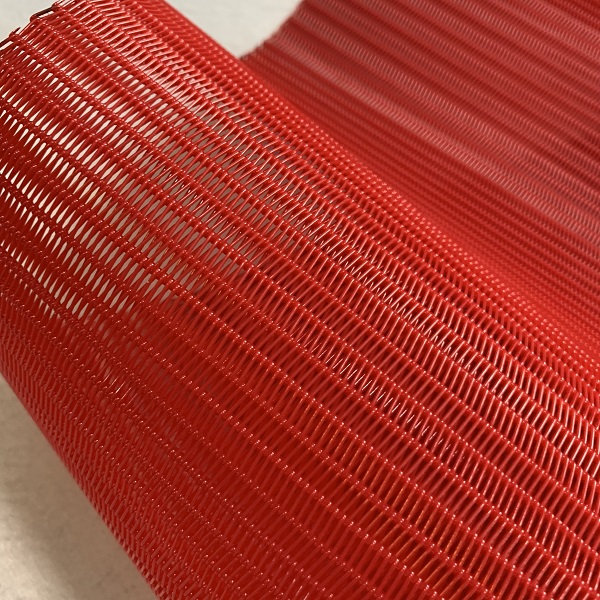

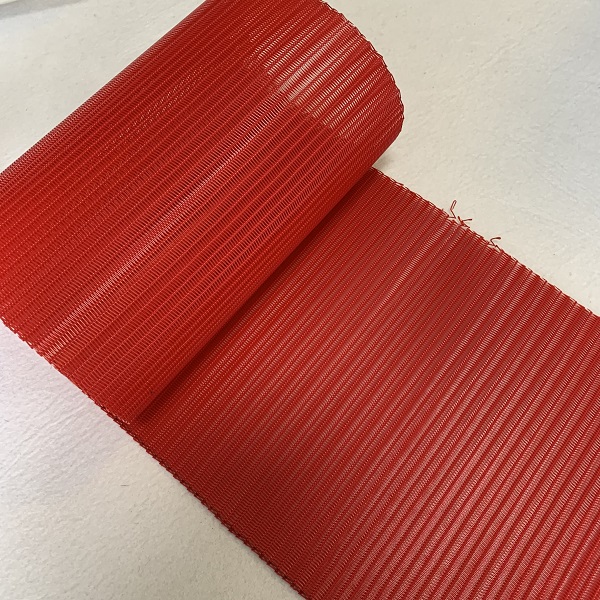

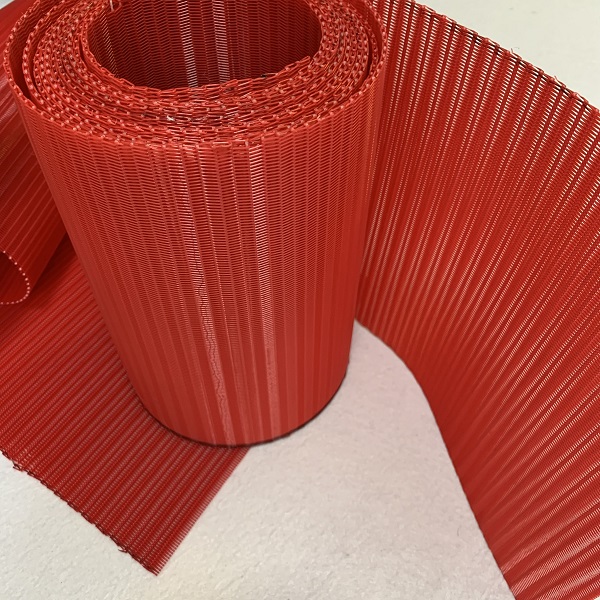

Red Color Polyester Spiral Dryer Screen Fabric For Paper Machine Dryer Cylinder Part
Introduction:
Polyester Spiral Dryer Fabric is suitable for drying packing paper, cultural paper, board paper and pulp board which be requested with big quantity, applies to the following machine speed not more than m600/s. The fabric is widely used in paper making, mining, food industry, pharmaceutical, printing and dyeing, rubber industry. Also could be used as conveyor belt and the laminating machine belt.
Polyester spiral dryer fabrics have the advantage of larger air permeability, smooth surface, good strength, long working time and easy to repair etc
The screw pressure filter is to add the filler wire into the spiral ring to reduce the air permeability and reduce the material loss on the mesh surface.
| Product Introduction | Polyester spiral dryer screen mesh belt |
| Mainly size | 0.7mm and 0.9mm wire diameter |
| Weight | 1.4KGS/square meter |
| Color | White, blue, red, black |
Advantages and Usage:
1. Stable heat and humidity resistance
2. Low thermal shrinkage and low thermal elongation
3. Resistant to most acids and organic solvents, safe for food processing
4. Polyester spiral chain belt dryer fabric belt has high strength and good air permeability, so this fabric belt is also used in high pressure water filter, horizontal belt coal washer, pulp separator, mesh belt coal washer, etc.
5. Tapes are widely used in printing and dyeing, food, salt, pharmaceutical, environmental protection and other industries.
6. Polyester spiral chain dryer fabric belt is also used in the paper industry, such as pulp drying, forming, paper making sewage treatment, etc.
Features
Polyester dryer screen belt is widely used in paper making, printing and dyeing, environmental protection, processing, food processing and other industries, round wire or flat can filled into to mesh according to user needs,adjust the air permeability as you wish to meet the technical demand. The net glue edge is imported glue.The glue can still constant hard in high temperature , color is stable,can adapt to different temperature change.
| Type | Spiral loop width mm | Wire Diameter(mm) | Tensile Strength (N/cm) | Weight Kg/m2 | Thickness mm | Air Permeability M3/m2h | CFM 127/pa |
| | | Spiral wire | Connection wire | | | | | |
| Small Loop 5080A | 5.2 | 0.50 | 0.80 | 1800 | 1.0 | 2.1 | 15000 | 937 |
| Middle Loop 6890A | 8 | 0.68 | 0.90 | 2000 | 1.31 | 2.45 | 18000 | 1125 |
| Middle Loop 6890B | 7.15 | 0.68 | 0.90 | 2000 | 1.40 | 2.45 | 16000 | 1000 |
| Big Loop 9090A | 8 | 0.90 | 0.90 | 2300 | 1.80 | 3.03 | 19000 | 1188 |
| Big Loop 90110A | 10 | 0.90 | 1.1 | 2300 | 1.65 | 3.15 | 20000 | 1250 |
| Big Loop 10090A | 8 | 1.0 | 0.90 | 2000 | 2.0 | 3.60 | 17000 | 1060 |
| Big Loop 120130A | 1.2 | 1.20 | 1.30 | 2600 | 2.35 | 4.30 | 22000 | 1375 |
