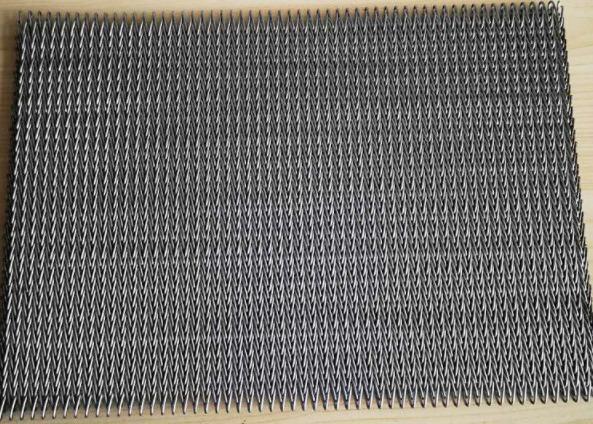

316 Stainless Steel Balanced Weave Comveyor Belt For Snack Food Production
Balanced Weave Conveyor Belts Specifications
A Balanced Weave Belt is the most versatile belt in many industries. These conveyor belts can be made from different alloys such as 304ss and 316ss. The Balanced weave belts are a series of left and right hand wire mesh spirals joined by a connecting rod or crimped rod
Some balanced weave belts can be manufactured to match new or existing pinrolls and are available in a wide range of specifications.
These straight line belts are the most common choice for friction driven conveyors. The straight line belts alternate right and left hand spiral construction with endless customisation options. Change Parts balanced weave belts are an economical weave, have high stability, can carry heavier loads for increased surface area. This all purpose conveyor belt provides the best surface area for production, it is smooth and the variable weave is available in dozens of sizes or custom designs.
Balanced Weave Conveyor Belts Datas
| Item Name | Balanced Weave Conveyor Belts |
| rod pitch(mm) | customized |
| wire diameter(mm) | 1.0 1.2 1.4 1.5 1.6 1.8 2.0 and customized |
| cross rod diameter(mm) | 6 / 8 / 10 / 12 |
| overallwidth | customized |
| Material | all parts rods, mesh, links in food grade stainless steel 304 / 316 |
| application | desserts, fish products, pizzas, vegetables, bread, flour, cakes, meat, candy, potatoes, biscuits, chocolate, nuts and fruits |
Balanced Weave Conveyor Belts Features
Temperature resistance, which can be used in extremely high and low temperatures.
Corrosion and rust resistance make it possible be used in the corrosive environments.
The baffles can be added onto the belt for convenient sorting and conveying.
The side guards can be added onto the belt to prevent products from spillage.
Chain link edge can ensure the smooth and high efficiency working.
Curved perforated plate conveyor belt is available to suit more applications and equipment.
Balanced Weave Conveyor Belts Application
Frozen food, canned food, seafood, food machinery, metalworking machines, continuous drying machines, heat treatment machines, glass machines, chemical machines, general machinery and special transportation machinery and other industries
Balanced Weave Conveyor Belts Quality Control
Balanced Weave Conveyor Belt Package
Balanced Weave Conveyor Belt Workshop
