Agricultural Farming Harvesting Stainless Steel Flat Wire Mesh Belt
Introduction of Flat Wire Mesh Belt
Flat wire mesh belt is specially used in industrial applications where stability and good drainage or air flow is paramount . It is highly suitable for use in multi-tier conveyors where headroom is restricted . The belt is also in great demand in food processing industry for high level of hygiene is required that is fulfilled by its easy cleaning feature and large open area . We provide this belt with sprockets that positively drive it . It is capable of use in normal speed as well as high speed conveyors
Specifications : Construction material- high carbon , steel , galvanizes , 304 stainless steel and 316 stainless steel Material : Stainless Steel Wire Diameter : 0.02mm-1.2mm Weave Style : plain weave, twill weave etc .
| Item | Size(mm) | Sheet thickness(mm) | sheet width(mm) | Material |
| Flat wire conveyor belt | 25.4*12.7 | 1.2 | 9.5 | carbon steel |
| | 25.4*25.4 | 1.2 | 9.5 | stainless steel |
| | 27.2*18 | 1.5 | 12 | galvanized steel |
| | 27.2*27.2 | 1.5 | 12 | |
| | 38.1*38.1 | 1.5-2.0 | 12 | |
| | 38.1*19 | 1.5-2.0 | 12 | |
| | 50.8*25.4 | 2.0-2.5 | 15 | |
| | 50.8*50.8 | 2.0-2.5 | 15 | |
Features of Flat Wire Mesh Belt
Straight run of the honeycomb belt
Positive driving of the flat wire belt without slipping
Large open area allows easy air flow on the tunnel freezer belt
Long lifetime of the conveyor belt
Be provided with corrosion resisting , stand wear and tear , thermostability .
Under negative and high temperature , be provided with good anticontraction , antioxidation , anti-breaking etc.
Reasonable design , compact structure , various sepcifications , easy installation , good operation reliability .
Application of Flat Wire Mesh Belt
Flat wire mesh belt has so many application usage . Such as Product handling systems , Sorting systems , Washing systems , Painting , Cleaning , Transferring , Parts washing , Bread production systems , Drying systems , Cooling systems , Food processing ,Freezing and Bakery

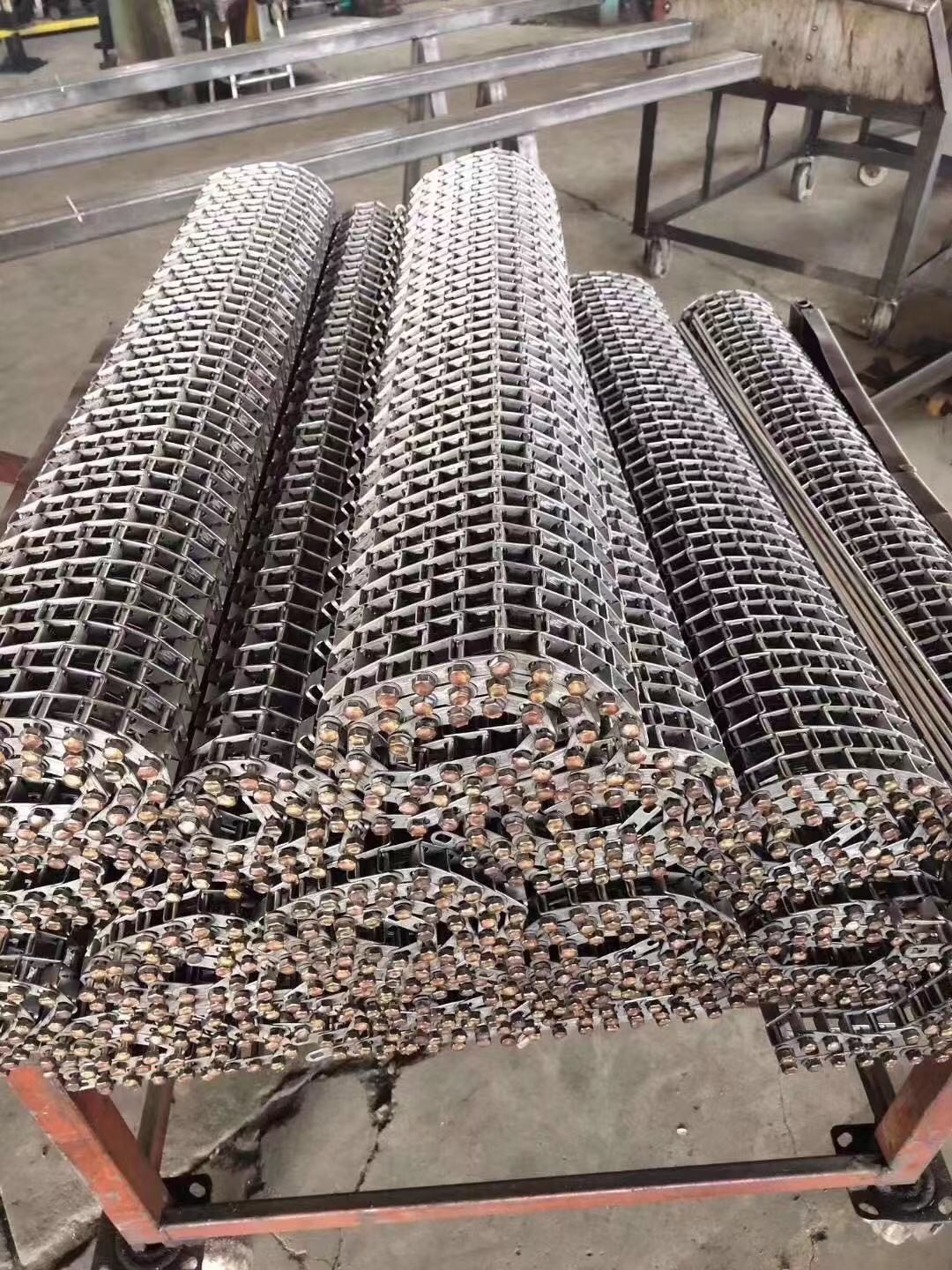

Product show of Flat wire mesh belt
